Macro and Photomicrography with the Canon G1: Technique.


Macro and Photomicrography with the Canon G1 by Guido Ballabio, Italy

Technique

Please use the links below left to navigate,
rather than scrolling down the page.

Tools

Process

Tips

An Introduction and Image Gallery are here.

Comments to the author Guido Ballabio are welcomed.

TOOLS

Micro Gallery
Technique


Process
Tips


Back

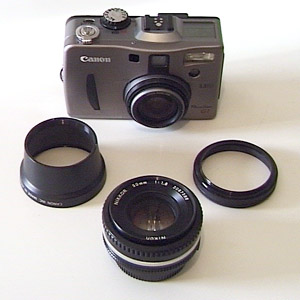

CAMERA - CANON G1 Digital Camera with 1 Gb IBM Microdrive - Adapter mount and rings for filters and additional lenses - Nikkor 50 f 1.8 objective mounted inverted for Macro

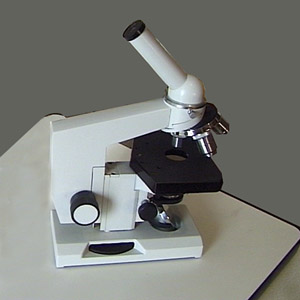

MICROSCOPES - BIOLAM S20 Biological with 9x - 40x - 90x objectives - PARALUX Trinocular Stereo Zoom 7x - 40x - Small Slides Photo Projector used as main Light Source

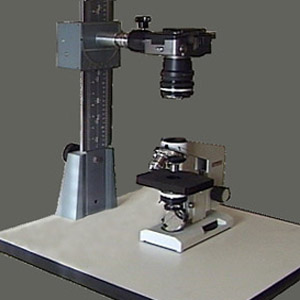

STAND - Old Dark Room Photo Enlarger Base and Column - Camera fixed to the Column Gear for up and down movements - Microscope on the Base with Camera carefully aligned over

TOOLS PICTURES


Back

PROCESS

Micro Gallery
Technique


Tools
Tips


Back


CONCEPT - Oculars removed from the Microscope - Picture taken directly through the "hole" of the eyepiece tube - Mandatory use of the inverted Nikkor 50 f 1.8 on the Camera


POSITIONING - Camera perfecly aligned and centered over the tube "hole" - Focus of the image by moving the Camera up and down - Additional adjustments by moving the Microscope focus knobs


PICTURE TAKING - Camera Focus set to Infinite with maximum Optical Zoom - AV Mode setting with Nikkor and Camera large apertures - Shutter start via Camera Remote Command

TIPS

Micro Gallery
Technique


Tools
Process


Back


CAMERA SETTINGS - Nikkor 50 f1.8 mandatory choice among various other objectives - Minimum vignetting ( 90 % ) with Nikkor large apertures only - Space between Camera and Microscope left open ( no tubes )


FOCUSING AND LIGHT - Best focusing view on Camera Display with 2x Digital Zoom - Use of external TV Monitor useful but image quality too poor - Low light better for details but slow Shutter Times required


IMAGE QUALITY - White Balance always bad with slow Shutter Times - Use of Photoshop mandatory for color corrections / adjustements - Eye image still ten times better than Camera pictures !..

Published in the February 2003 edition of Micscape Magazine.
